Vertical Glass Washing Machines
Quick Change
Wheel System
Affordable Glass Washing Solutions
All Vertical Glass Washier Models Feature:
•
Right to left (standard) or Left to right feed
•
Stainless Steel throughout washing section
•
Powder coated where painted
•

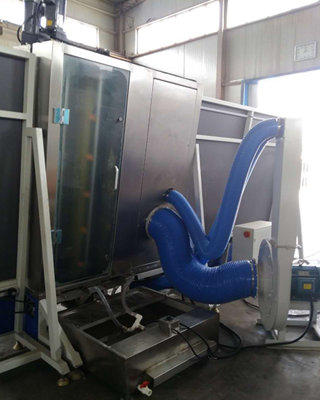

Dryer system uses high pressure blower for
excellent drying
•

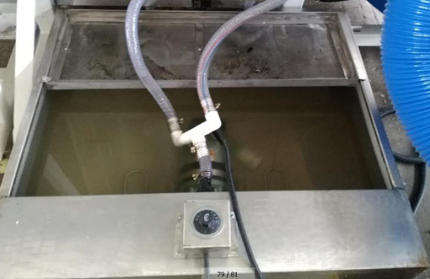

Premium grade water pumps
•
Variable speed
•
Water heater
•
Inspection Lighting on out feed conveyor
•
Simple Operator Controls

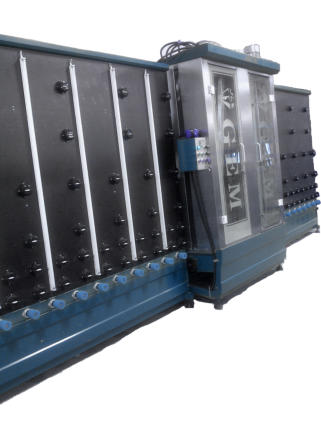

Model GEMVW-1600
•
Closed or Open Top Vertical Glass Washer - Ideal for use
after edging
•

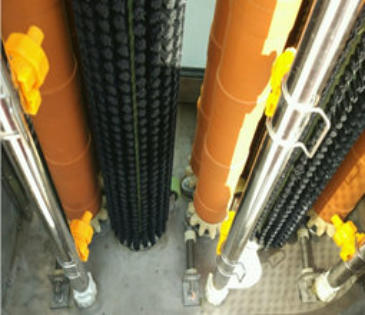

Brushes: 4 Standard brushes
•
Voltage: to customer’s need
•
Power: 6 KW
•
Max.wash size of original glass: 63” (closed top)
•
Max. wash size - 126” for open top (2 passes)
•
Min.size of original glass: 400x 280 mm (16” x 11”)
•
Thickness of original glass: 3-12 mm (⅛-½”)
•
Weight: 1500kgs (3300lbs)
•
Overall size:6200 x 1250 x 2600mm (20.34 ft. x 4.10 ft x
8.53 ft.)

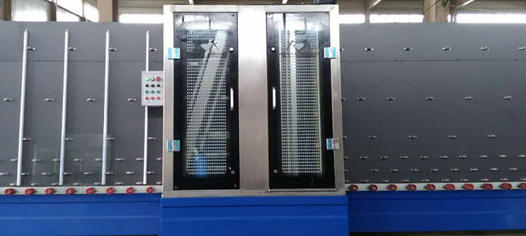

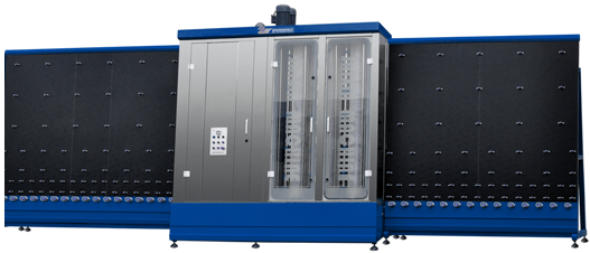

Model GEMVW-2000
•
Closed Top Vertical Glass Washer
•
Insulated Glass washing grade
•
Brushes: 4 soft Low E brushes+2 standard brushes
(retractable)
•
Voltage:to customer’s need
•
Power: 15 KW*
•
Max.size of original glass: 2000 x 2800mm (78” x 110”)
- longer possible
•
Min.size of original glass: 400 x 280mm (16” x 11”)
•
Thickness of original glass: 3-12 mm (Optional thicker
on request)
•
Work speed: 8-48 m/min
•
Weight: 3000 kgs (6615 lbs)
•
Overall size: 7500 x 2660 x 2880mm (24.6 ft. x 8.27 ft. x
9.45 ft.)

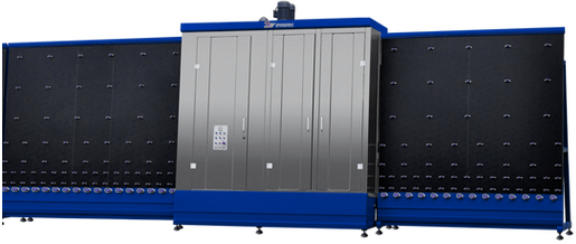

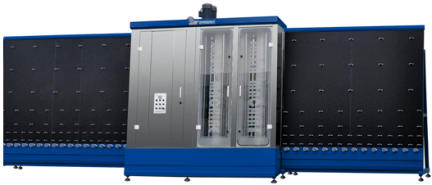

Model GEMVW-2500
•
Closed Top Washer
•
Insulated Glass washing grade
•
Brushes: 4 soft Low E brushes+2 standard brushes
(retractable)
•
Voltage:to customer’s request
•
Power: 15 KW*
•
Max.size of original glass: 2500x 3200mm (98” x 126”)
•
Min.size of original glass: 400 x 280mm (16” x 11”)
•
Thickness of original glass: 3-12 mm (Optional thicker on
request)
•
Work speed: 8-48 m/min
•
Weight: 4000kgs (8818 lbs)
•
Overall size: 9000 x 2660 x 3380 mm (29.5 x 8.3 x 11.1 ft.)

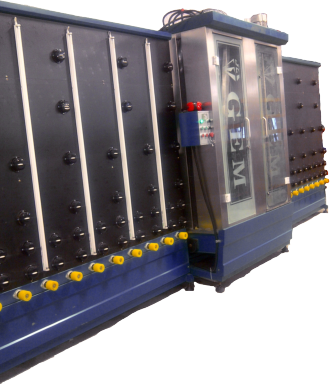

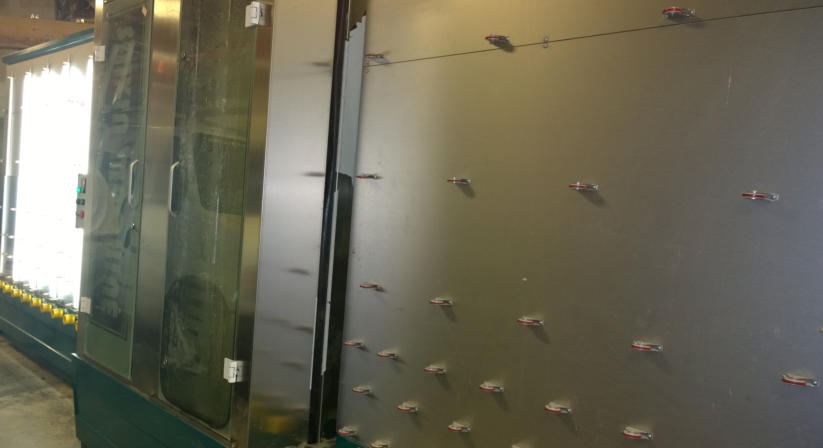

GEMVW-1600
Actual Machines may vary from photos
