CNC Shape Glass Cutting - Stand Alone with Air floatation
GEM WASH

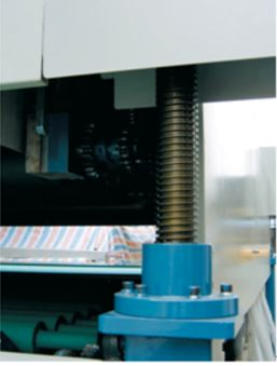

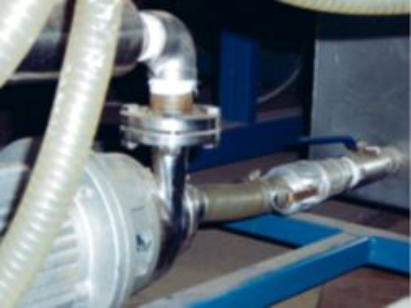

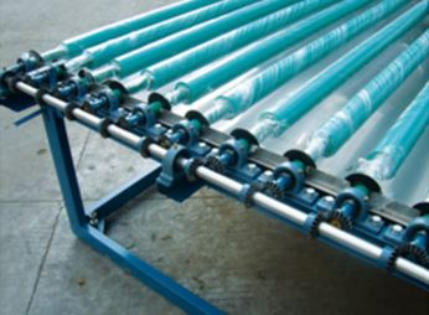

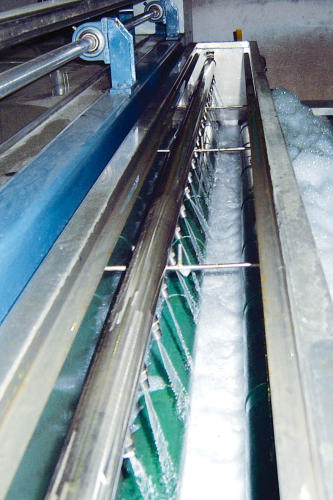

All HORIZONTAL Glass Washier Models Feature: Top mounted blower to save space includes air filter and noise reducing materials UL Rated Direct Drive Conveyor with steel gears Variable speed Brush rollers rotate by 2 motors using a sturdy V-belt for consistency Loading section includes a prewash Stainless steel materials where in contact with water Rubber coated conveyor rollers Washing and drying section can be raised electrically up to 400mm (15.74 inches) for maintenance and cleaning convenience Premium grade water pumps Water heater Inspection Lighting on out feed conveyor Simple Operator Controls
Actual Machines may vary slightly from photos
Actual Machines may vary slightly from photos
Standard Horizontal Washing Machines Model Max.  Glass  Width  (inches) Min. Glass  Size  (inches) Glass  Thickness Wash  speed 4- 5m/ min Wash  Speed 8m /  min 1600 63.0 8 x 12 2 to 25mm 19.24            34.24               1800 70.9 12 x 12 2 to 25mm 23.80           38.50              2000 78.7 12 x 12 2 to 25mm 25.12            43.62              2500 98.4 12 x 12 2 to 25mm 28.62           47.12               3000 118.1 12 x 24 2 to 25mm 46.35            53.35               3300 129.9 12 x 24 2 to 25mm 46.35            53.35               Power (kw) Low E Glasss Horizontal Washing Machines Model  (HWLE) Max. Glass  Width  (inches) Min. Glass  Size  (inches) Glass  Thickness Wash  speed 4- 5m/ min Wash  Speed 8m /  min 1600 63.0 8 x 12 2 to 25mm 19.24            34.24               1800 70.9 12 x 12 2 to 25mm 23.80           38.50              2000 78.7 12 x 12 2 to 25mm 25.12            43.62              2500 98.4 12 x 12 2 to 25mm 28.62           47.12               3000 118.1 12 x 24 2 to 25mm 46.35            53.35               3300 129.9 12 x 24 2 to 25mm 46.35            53.35               Power (kw) CNC Glass Cutting Tables Mobile Glass Handling Solutions UATTROLIFTS Glass  Laminating  Machines GEM GLASS  MACHINES  Glass Fabrication Machines GEM TOOL •	Glass Diamond Wheels •	Glass Resin Wheels •	Glass Polish Wheels •	Glass Drill Bits Quick Change  Wheel System Glass Storage, Dollies, Other Glass Handling  Equipment Glass Handling  Equipment
CNC Shape Glass Cutting - Stand Alone with Air floatation
Quick Change Wheel System
GEM WASH
All HORIZONTAL Glass Washier Models Feature: Top mounted blower to save space includes air filter and noise reducing materials UL Rated Direct Drive Conveyor with steel gears Variable speed Brush rollers rotate by 2 motors using a sturdy V-belt for consistency Loading section includes a prewash Stainless steel materials where in contact with water Rubber coated conveyor rollers Washing and drying section can be raised electrically up to 400mm (15.74 inches) for maintenance and cleaning convenience Premium grade water pumps Water heater Inspection Lighting on out feed conveyor Simple Operator Controls

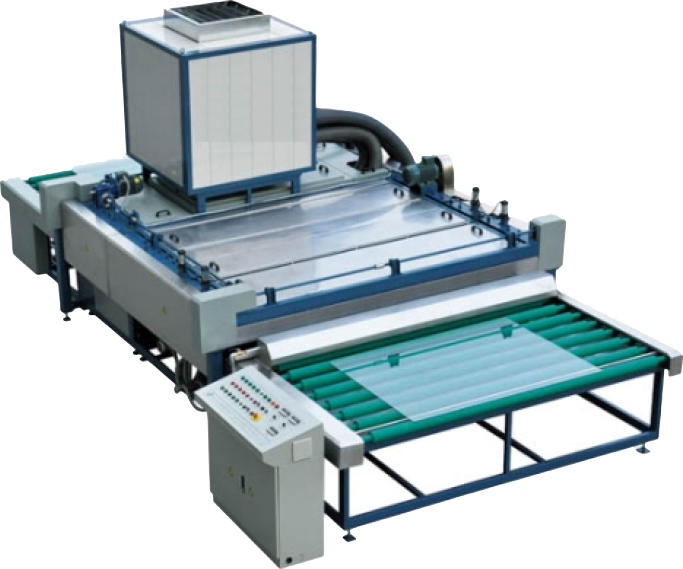

HW Series Actual Machines may vary slightly from photos
Standard Horizontal Washing Machines Model Max.  Glass  Width  (inches) Min. Glass  Size  (inches) Glass  Thickness Wash  speed 4- 5m/ min Wash  Speed 8m /  min 1600 63.0 8 x 12 2 to 25mm 19.24            34.24               1800 70.9 12 x 12 2 to 25mm 23.80           38.50              2000 78.7 12 x 12 2 to 25mm 25.12            43.62              2500 98.4 12 x 12 2 to 25mm 28.62           47.12               3000 118.1 12 x 24 2 to 25mm 46.35            53.35               3300 129.9 12 x 24 2 to 25mm 46.35            53.35               Power (kw) Low E Glasss Horizontal Washing Machines Model  (HWLE) Max. Glass  Width  (inches) Min. Glass  Size  (inches) Glass  Thickness Wash  speed 4- 5m/ min Wash  Speed 8m /  min 1600 63.0 8 x 12 2 to 25mm 19.24            34.24               1800 70.9 12 x 12 2 to 25mm 23.80           38.50              2000 78.7 12 x 12 2 to 25mm 25.12            43.62              2500 98.4 12 x 12 2 to 25mm 28.62           47.12               3000 118.1 12 x 24 2 to 25mm 46.35            53.35               3300 129.9 12 x 24 2 to 25mm 46.35            53.35               Power (kw)

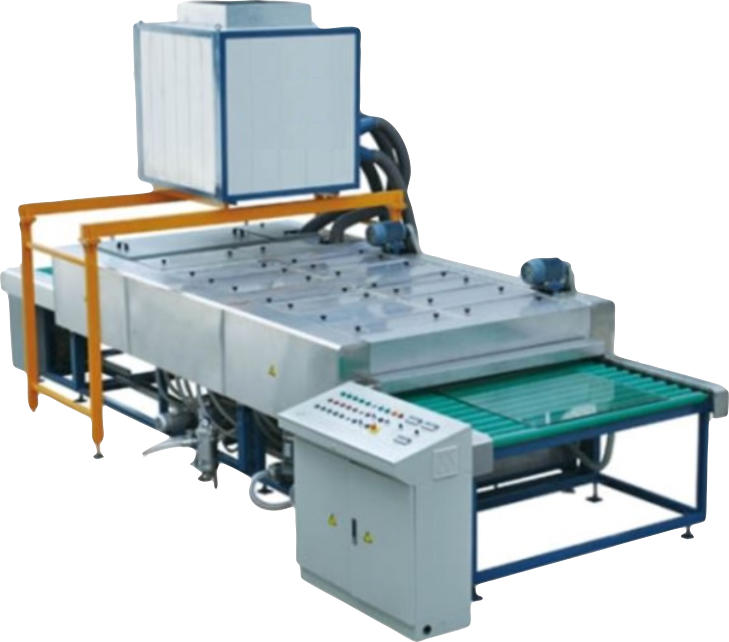

HWLE Series Actual Machines may vary slightly from photos
CNC Glass Cutting Tables Mobile Glass Handling Solutions UATTROLIFTS GEM TOOL •	Glass Diamond Wheels •	Glass Resin Wheels •	Glass Polish Wheels •	Glass Drill Bits Glass Storage, Dollies, Other Glass Handling  Equipment Glass Handling  Equipment GEM GLASS  MACHINES
